Brushless Planetary Gear Motors

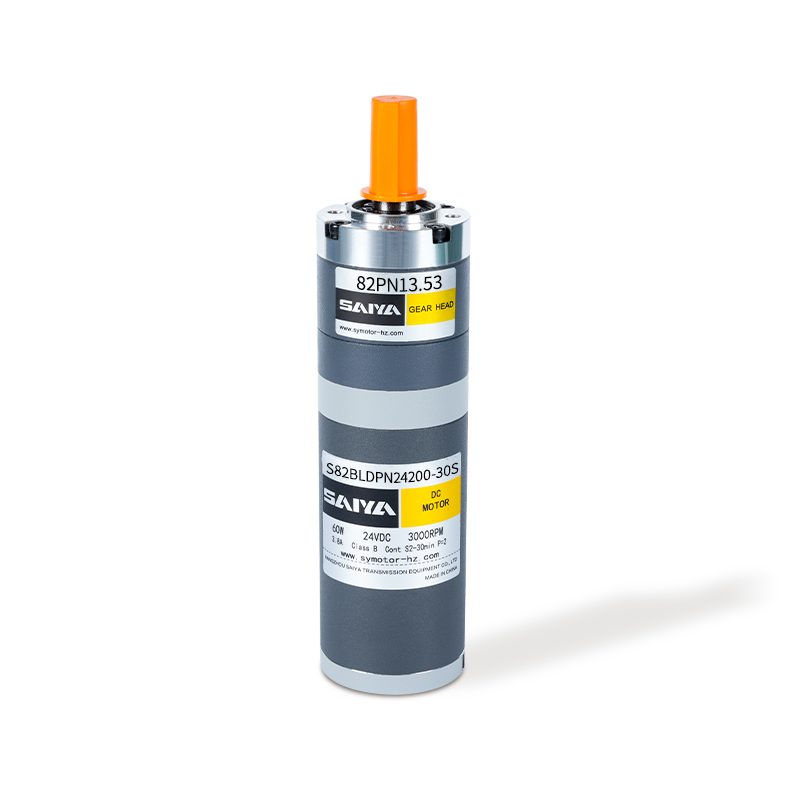

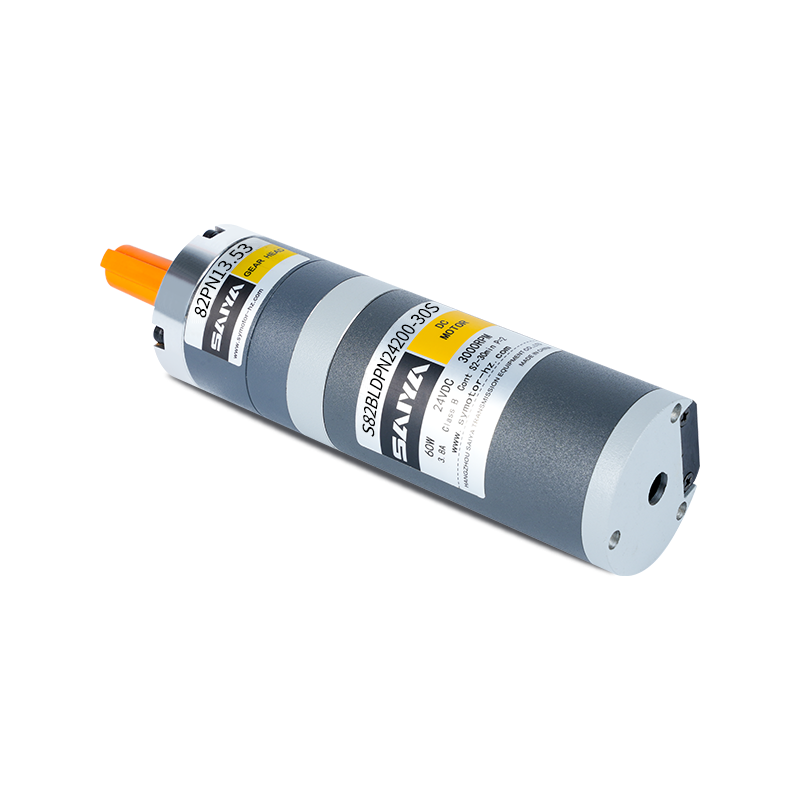

82mm Brushless Planetary Gear Motors

Size:  82mm

Brushless transmission planetary/rated current:  12A-18A

Rated torque:  0.637-0.955N.M

Reduction ratio:  3.7-392.98



  • 82mm Brushless Planetary Gear Motors
  • 82mm Brushless Planetary Gear Motors
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.
  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 82mm brushless planetary motor is a high-efficiency motor product that is widely used in various scenarios requiring precision transmission. The rated current of this motor is 12-18A and the rated torque is 0.637-0.955N.M. It can provide stable and strong power output to meet the needs of various complex working environments.

The motor has a wide range of gear ratios, from 3.7 to 392.98. Users can choose the appropriate reduction ratio according to the specific application to achieve precise speed control and torque transmission. Its brushless design not only improves the life of the motor, but also greatly reduces the maintenance requirements and ensures long-term stable operation.

The 82mm brushless planetary motor performs particularly well in automation equipment, robots, medical equipment, and aerospace. Its high efficiency, low noise and high reliability make it an ideal choice for high-demand application scenarios. Whether in precision motion control or high-load transmission, this motor can provide excellent performance. With its superior design and performance, this motor has become a popular transmission solution in the market.

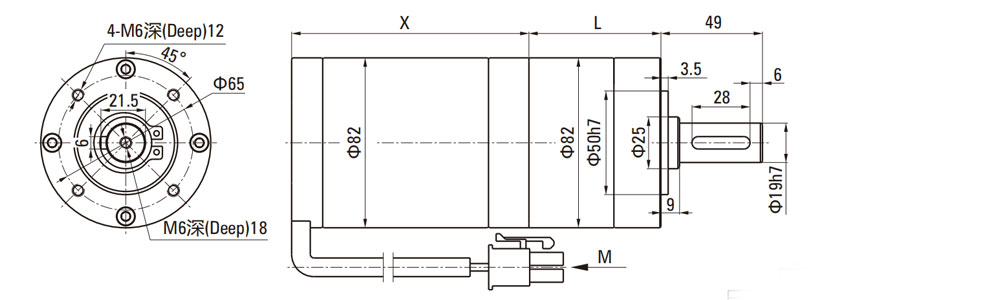

Outside Diameter 82 DC Brushless Motor

Motor Type Dimension Gearbox Model   Gear Ratio Dimension
S82BLDPN24200-30S 114.5 82ZPN□ 3.65~8.63 63.70
13.53~58.22 80.50
S82BLDPN24300-30S 136.5
67.08~392.98 103.2

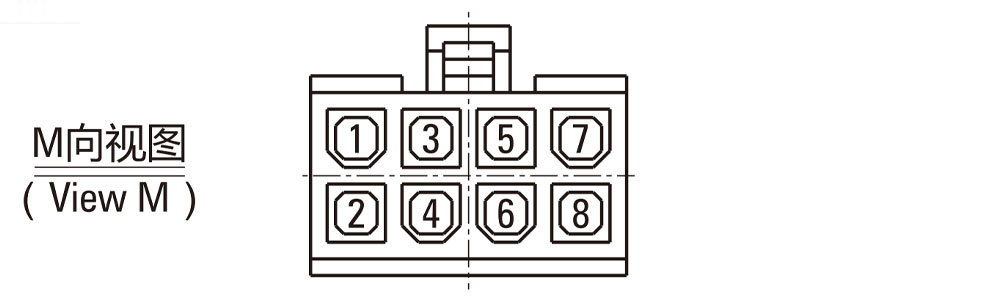

1 2 3 4 5 6 7 8
U V W GND Hv Hw Hu +Vcc

BLDC Motor Technical Data

Motor Type Voltage
V
Rated Power
W
Rated Current
A
Rated Speed
RPM
Rated Torque
Nm
Grade Protection
IP
S82BLDPN24200-30S 24  200 12 3000  0.637 20
S82BLDPN24300-30S 24  300 18 3000  0.955 20

BLDC Planetary Gear Motor Technical Data-S82BLDPN24200-30S

Ratio 3.65  5.36  6.55  8.63  13.53  18.92  24.65  28.05  33.92  44.69  58.22  67.08  81.11
Output shaft speed 822  560  458  348  222  159  122  107  88  67  52  45  37
Allowable torque 2.09  3.07  3.75  4.94  6.98  9.76  12.71  14.47  17.49  23.05  30.02  31.18  37.70
Reduction stage

Ratio 91.36  102.88  118.98  127.74  145.36  165.64  191.56  231.61  301.68  392.98
Output shaft speed 33  29  25  23  21  18  16  13  10
Allowable torque 42.46  47.82  55.30  59.37  67.56  76.98  89.03  107.64  120.0  120.0
Reduction stage
+ Understand detailed product parameters
