Size: 32mm
Brushless transmission planetary/rated voltage: 24V
Power consumption: 20W
Rated speed: 4000RPM
Logistics Sorting
Automated Robots
laser cutting
Access control gate
Photovoltaic Power Station
Medical Devices
AGV

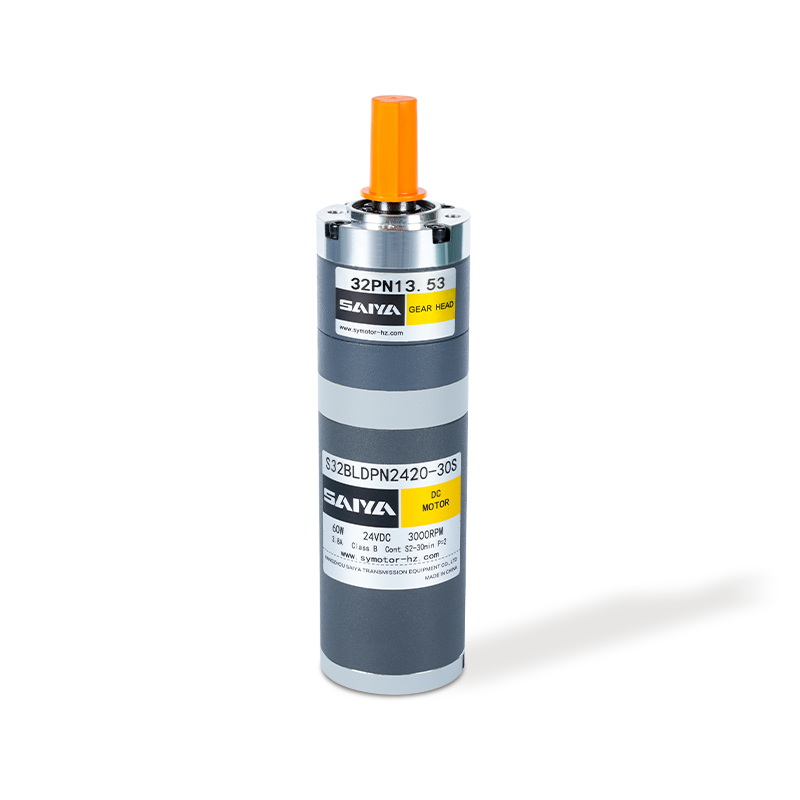

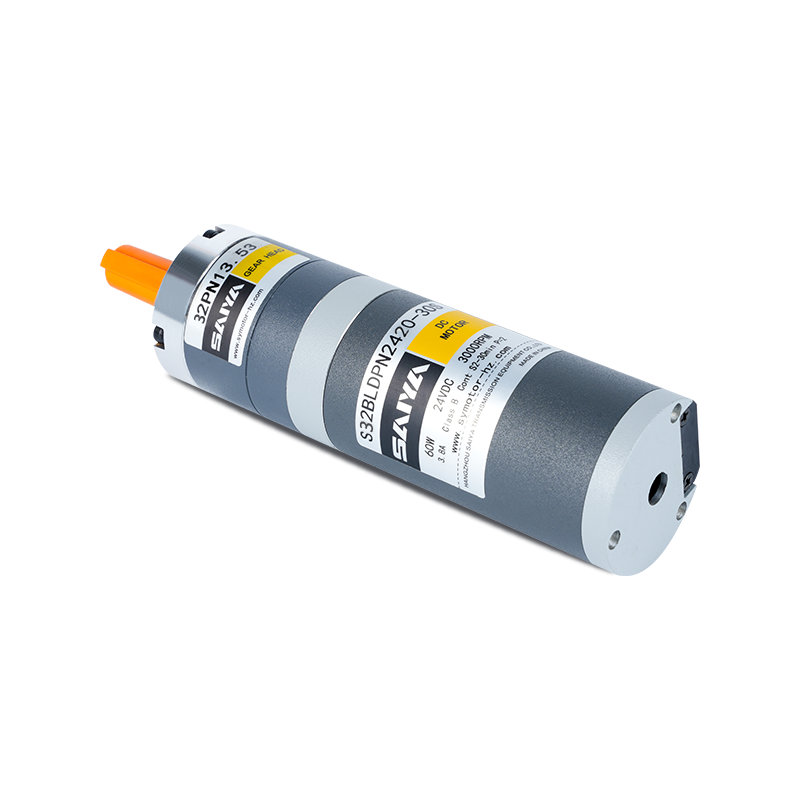

The 32mm Brushless Planetary Gear Motor is a high-performance, compact solution ideal for applications requiring efficiency and reliability. Operating at a rated voltage of 24V and consuming 20W of power, this motor is designed to deliver robust performance while maintaining energy efficiency.
One of the standout features of this motor is its brushless design, which significantly reduces maintenance needs and extends the motor's lifespan. The absence of brushes minimizes wear and tear, to smoother and quieter operation, making it suitable for noise-sensitive environments.
With a rated speed of 4000 RPM, this motor is capable of high-speed operations, making it an choice for dynamic applications requiring quick and precise movements. The planetary gear system further enhances its performance by providing high torque transmission with minimal backlash, ensuring accurate and reliable performance even under heavy loads.
This motor's 32mm diameter makes it compact enough for use in tight spaces without compromising on power and efficiency. Its robust construction ensures durability, making it suitable for a wide range of industrial and commercial applications, including robotics, automation systems, and precision instruments.

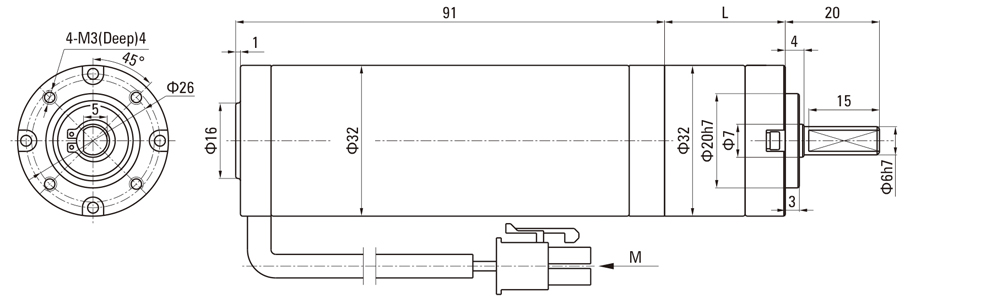

| Motor Type | Gearbox Model | Gear Ratio | Dimension(mm) |
| S32BLDPN | 32ZPN□ | 3.7～6.75 | 25.6 |
| 13.73～45.56 | 35.9 | ||
| 50.89~307.54 | 46.2 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| U | V | W | GND | Hv | Hw | Hu | +Vcc |
| Motor Type | Voltage | Ratod Powen | Rated Current | Rated Speed | Rated Torque | Grade Protection |
| W | W | A | FPM | Nm | IP | |
| S32BLDPN2420-40S | 24 | 20 | 1.3 | 4000 | 0.048 | 20 |
| Ratio | 3.7 | 5.18 | 6.75 | 13.73 | 19.2 | 25 | 28.93 | 34.97 | 45.56 | 50.89 | 68.08 | 78.7 | 92.7 |
| Output shaft speed(r/min) | 1081 | 772 | 593 | 291 | 208 | 160 | 138 | 114 | 88 | 79 | 59 | 51 | 43 |
| Allowable torque(N.m) | 0.16 | 0.22 | 0.29 | 0.53 | 0.74 | 0.97 | 1.12 | 1.35 | 1.76 | 1.77 | 2.37 | 2.74 | 3.23 |
| Reduction stage | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Ratio | 99.5 | 115.1 | 129.16 | 149.9 | 168.85 | 195.28 | 236.1 | 307.54 | |||||
| Output shaft speed(r/min) | 40 | 35 | 31 | 27 | 24 | 20 | 17 | 13 | |||||
| Allowable torque(N.m) | 3.47 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||
| Reduction stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
