Brushless Planetary Gear Motors

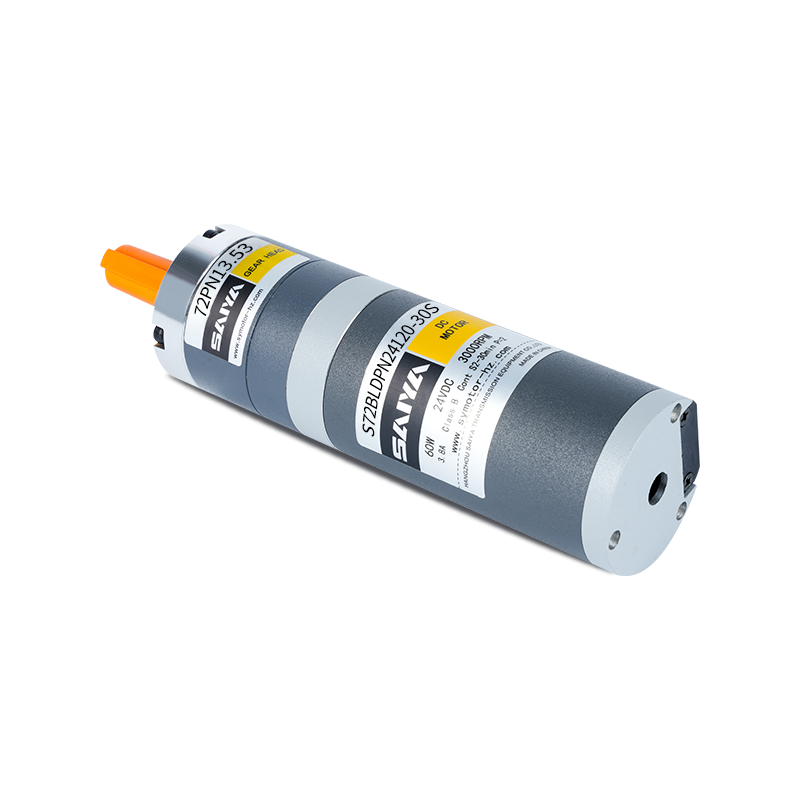

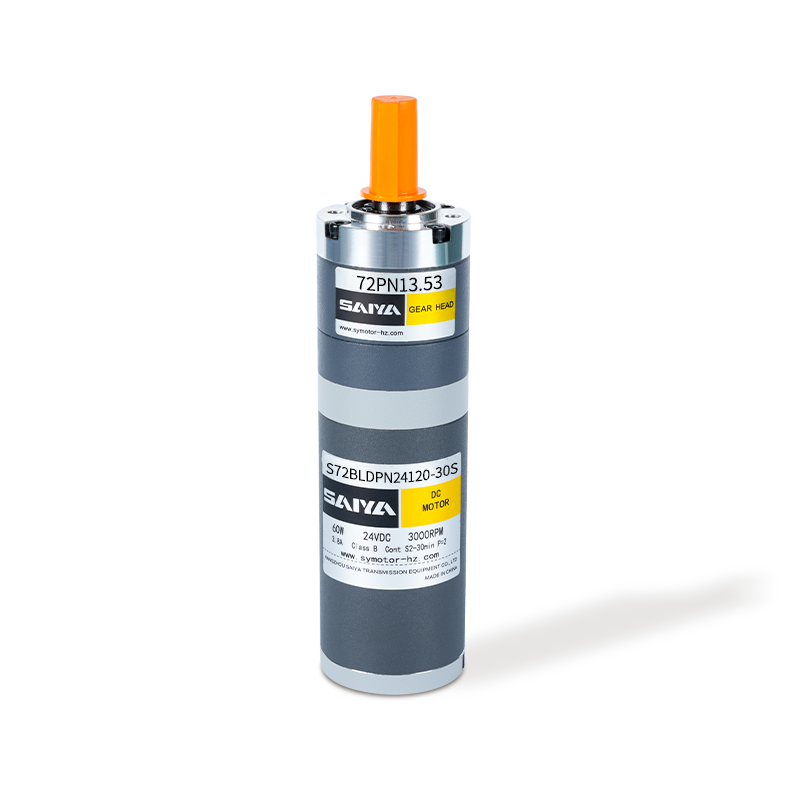

72mm Brushless Planetary Gear Motors

Size:  72mm

Brushless transmission planetary/rated voltage:  24V

Power consumption:  120W-150W

Rated speed:  3000RPM



  • 72mm Brushless Planetary Gear Motors
  • 72mm Brushless Planetary Gear Motors
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.
  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 72mm Brushless Planetary Gear Motor is a high-performance, compact solution ideal for applications requiring efficiency and reliability. Operating at a rated voltage of 24V and consuming 120W-150W of power, this motor is designed to deliver robust performance while maintaining energy efficiency.

One of the standout features of this motor is its brushless design, which significantly reduces maintenance needs and extends the motor's lifespan. The absence of brushes minimizes wear and tear, leading to smoother and quieter operation, making it suitable for noise-sensitive environments.

With a rated speed of 3000 RPM, this motor is capable of high-speed operations, making it an excellent choice for dynamic applications requiring quick and precise movements. The planetary gear system further enhances its performance by providing high torque transmission with minimal backlash, ensuring accurate and reliable performance even under heavy loads.

This motor's 72mm diameter makes it compact enough for use in tight spaces without compromising on power and efficiency. Its robust construction ensures durability, making it suitable for a wide range of industrial and commercial applications, including robotics, automation systems, and precision instruments.

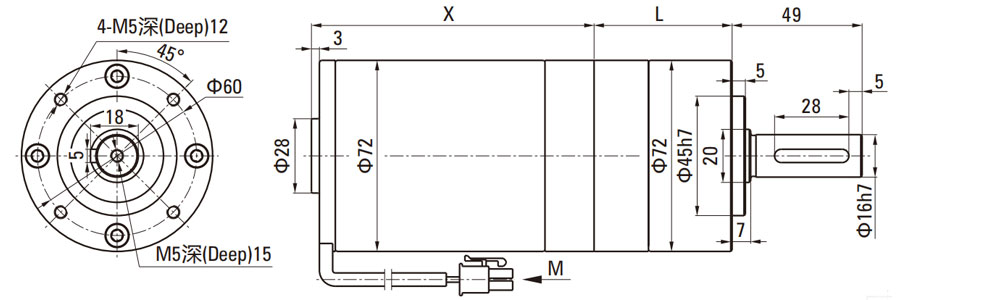

Outside Diameter 72 DC Brushless Motor

Motor Type Dimension Gearbox Model Gear Ratio Dimension
S72BLDPN24120-30S 106.5 72ZPN□ 3.65~8.63 52.0
13.53~58.22 72.15
S72BLDPN24150-30S 129.5
67.08~392.98 92.3

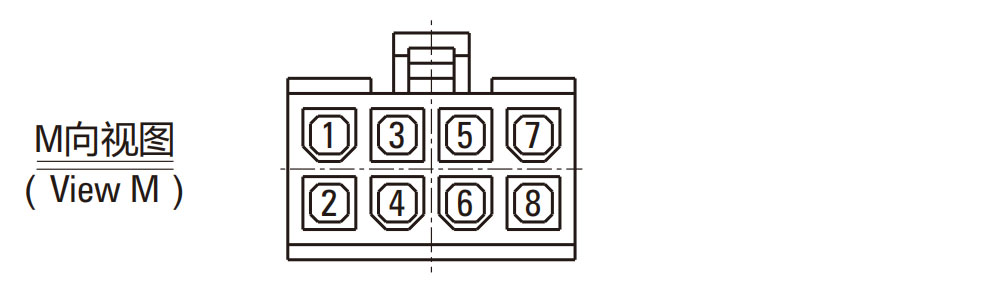

1 2 3 4 5 6 7 8
U V W GND Hv Hw Hu +Vcc

BLDC Motor Technical Data

Motor Type Voltage
V
Rated Power
W
Rated Current
A
Rated Speed
RPM
Rated Torque
Nm
Grade Protection
IP
Z72BLDPN24120-30S 24  120 6.6 3000  0.382  20
Z72BLDPN24150-30S 24  150 8.5 3000  0.478  20

BLDC Planetary Gear Motor Technical Data-S72BLDPN24120-30S

Ratio 3.65  5.36  6.55  8.63  13.53  18.92  24.65  28.05  33.92  44.69  58.22  67.08  81.11
Output shaft speed 822  560  458  348  222  159  122  107  88  67  52  45  37
Allowable torque 1.25  1.84  2.25  2.97  4.19  5.85  7.63  8.68  10.50  13.83  18.01  18.71  22.62
Reduction stage

Ratio 91.36  102.88  118.98  127.74  145.36  165.64  191.56  231.61  301.68  392.98
Output shaft speed 33  29  25  23  21  18  16  13  10
Allowable torque 25.48  28.69  33.18  35.62  40.50  46.19  53.42  64.59  84.00  84.00
Reduction stage
