Brush Planetary Gear Motors

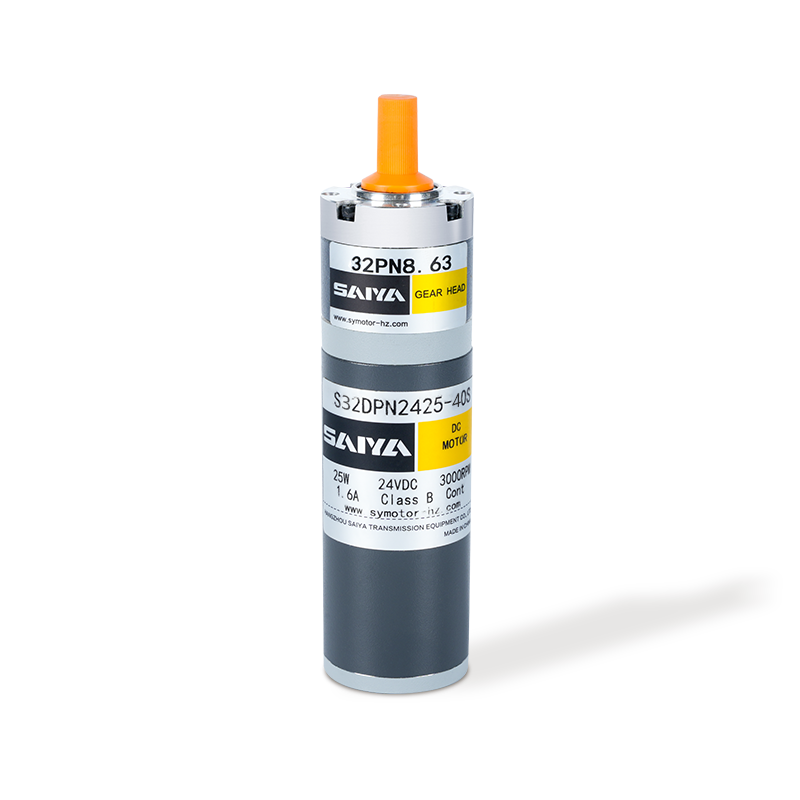

32mm Brush Planetary Gear Motors

Size:  32mm

Brushed transmission planetary/rated voltage:  24V

Power consumption:  10-15W

Rated speed:  4000-5000RPM



  • 32mm Brush Planetary Gear Motors
  • 32mm Brush Planetary Gear Motors
PREV   |   No next article

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 32mm brushed planetary gear motor is a compact and efficient solution designed for various applications requiring high torque and precise control. With a diameter of 32mm, this motor is ideally suited for situations where space is at a premium but performance cannot be compromised. The motor operates at a rated voltage of 24V and consumes a power range of 10 to 15 watts, making it energy-efficient while still delivering robust performance.

One of the standout features of this motor is its rated speed, which ranges from 4000 to 5000 RPM. This high-speed capability, coupled with the torque multiplication provided by the planetary gear system, ensures that the motor can handle demanding tasks with ease. The planetary gear arrangement not only enhances torque but also ensures smooth and consistent operation, reducing the stress on individual gears and extending the motor's lifespan.

Ideal for use in robotics, automation, and small machinery, the 32mm brushed planetary gear motor combines reliability and efficiency. Its compact size and powerful output make it a versatile choice for engineers and designers looking to implement high-performance motion control in their projects.

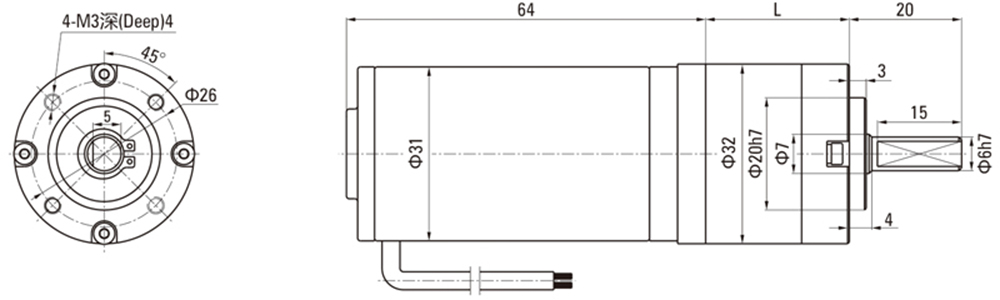

Outside Diameter 32 DC Brush Motor

Motor Type Gearbox Model Gear Ratio Dimension
32ZPN□ Stagel 3.7～6.75 25.6
S32DPN Stage2 14～46 35.9
Stage3 51～308 46.2

Blush-DC Motor Technical Data

Motor Type Voltage Power No-Load Comment No-load Speed Rated Current Rated Speed Rated Torque Motor Life
V W A RPM A RPM Nm H
S32DPN2410-40S 24 10 0.4 5000 0.7 4000 0.024 2000
S32DPN2415-50S 24 15 0.5 6000 1.1 5000 0.029 2000

Blush-DC Planetary Gear Motor Technical Data-S32DPN2410-40S

Ratio 3.7 5.18 6.75 13.73 19.2 25 28.93 34.97 45.56 50.89 68.08 78.7 92.7
Output shaft speed（r/min） 1081 932 772 592 285 210 160 137 114 87 78 59 50
Allowable torque（N.m） 0.08 0.092 0.111 0.145 0.27 0.367 0.483 0.561 0.6777 0.89 0.889 1.185 1.3777
Reduction stage 1 1 1 1 2 2 2 2 2 2 3 3 3

Ratio 99.5 115.1 129.6 149.9 168.85 195.28 236.1 307.54
Output shaft speed（r/min） 43 40 35 31 26 23 20 17
Allowable torque（N.m） 1.621 1.743 2.004 2.266 2.614 2.945 3.4 4
Reduction stage 3 3 3 3 3 3 3 3
