The 32mm brushed planetary gear motor is a compact and efficient solution designed for var...
Motor Type | Gearbox Model | Gear Ratio | Dimension(mm) |
S82DPN | 82ZPN□ | 3.65~8.63 | 63.70 |
13.53~58.22 | 80.50 | ||
67.08~392.98 | 103.2 |
Size: 82mm
Brushed transmission planetary/rated current: 1.5-2.5A
Rated torque: 0.287-0.573N.M
Reduction ratio: 3.7-392.98
Logistics Sorting
Automated Robots
laser cutting
Access control gate
Photovoltaic Power Station
Medical Devices
AGV

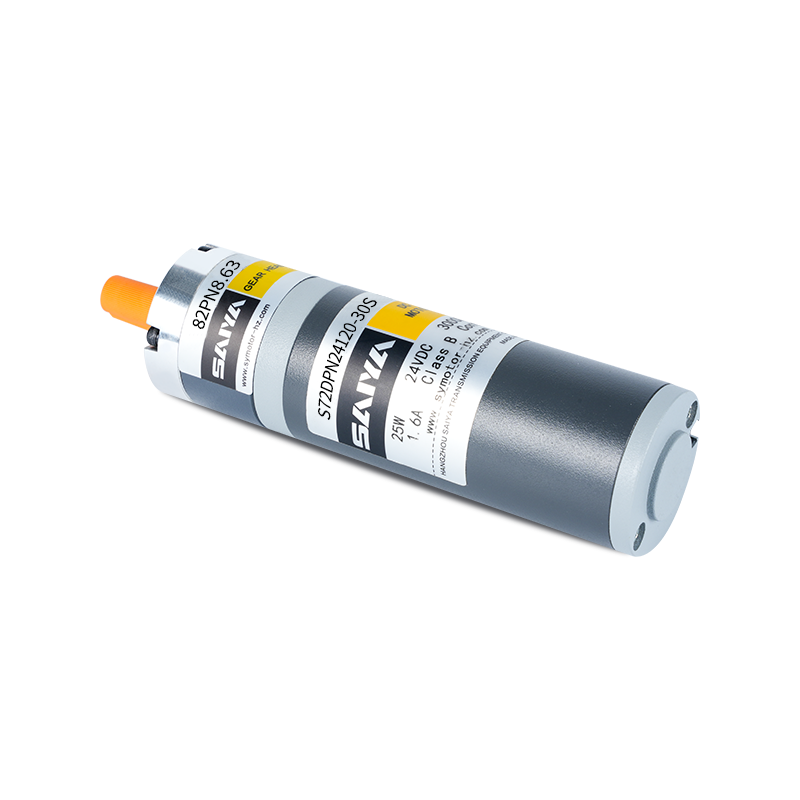

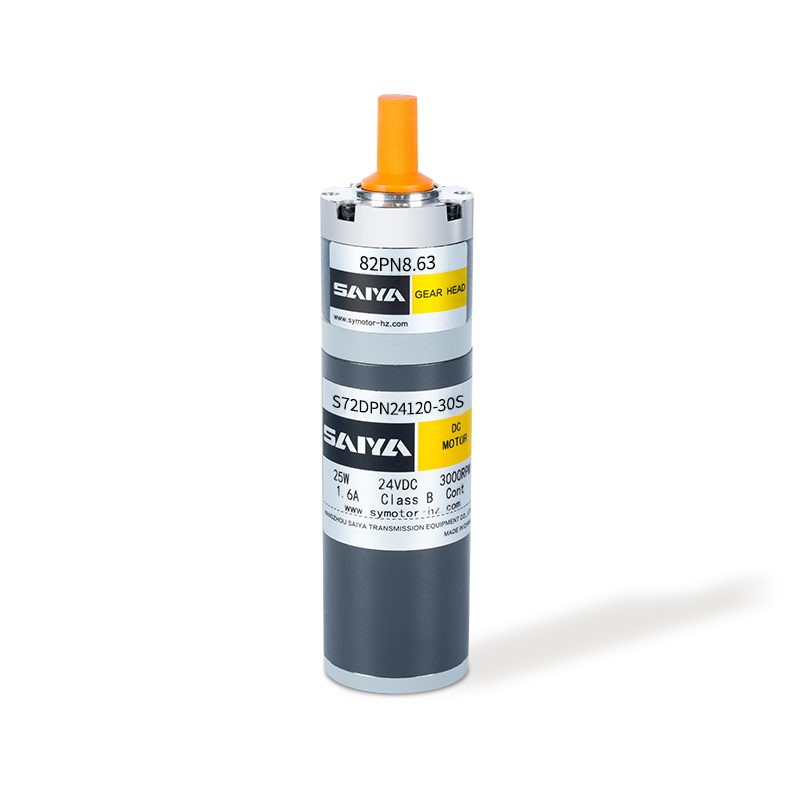

The 82mm brush planetary gear motor is a versatile and efficient component widely used in various applications requiring precise torque and speed control. With a rated current ranging from 1.5 to 2.5A, this motor is designed to deliver consistent performance while maintaining energy efficiency. Its rated torque falls between 0.287 to 0.573N.m, ensuring reliable operation under load conditions.
One of the key features of this motor is its broad range of gear ratios, from 3.7:1 to 392.98:1. This wide spectrum allows for significant flexibility in design, making it suitable for diverse applications, from robotics and automation systems to small machinery and tools. The planetary gear design enhances the torque output and improves the efficiency and durability of the motor by distributing the load across multiple gears.
82mm brush planetary gear motor stands out for its combination of compact size, robust performance, and adaptability, making it an ideal choice for engineers and designers looking to optimize their mechanical systems.

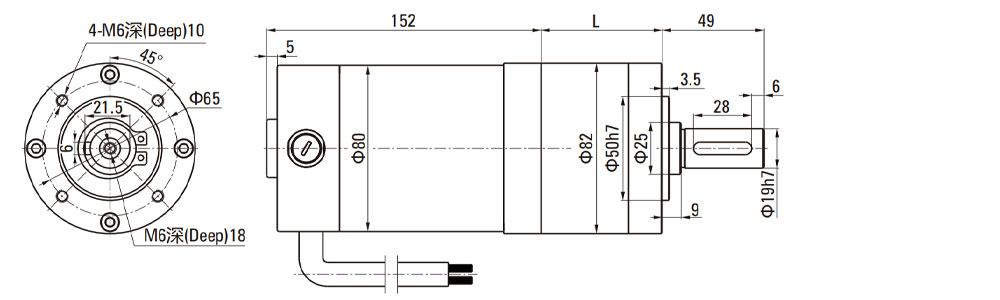

Motor Type | Gearbox Model | Gear Ratio | Dimension(mm) |
S82DPN | 82ZPN□ | 3.65~8.63 | 63.70 |
13.53~58.22 | 80.50 | ||
67.08~392.98 | 103.2 |
Motor Type | Voltage V |
Rated Power W |
No-load Current A |
No-load Speed RPM |
Rated Current A |
Rated Speed RPM |
Rated Torque N.m |
Motor Life H |
S82DPN24180-30S | 12 | 180 | 2.5 | 3400 | 10.5 | 3000 | 0.573 | 2000 |
S82DPN24120-30S | 24 | 120 | 2.0 | 3400 | 7.20 | 3000 | 0.382 | 2000 |
S82DPN48180-30S | 48 | 180 | 1.5 | 3400 | 5.50 | 3000 | 0.573 | 2000 |
Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
Output shaft speed | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 89 | 67 | 52 | 45 | 37 |
Allowable torque | 1.30 | 1.80 | 2.30 | 3.00 | 4.20 | 5.90 | 7.60 | 8.70 | 10.5 | 13.8 | 18.0 | 18.7 | 22.6 |
Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
Output shaft speed | 33 | 29 | 25 | 24 | 21 | 18 | 16 | 13 | 9.9 | 7.6 |
Allowable torque | 25.5 | 28.7 | 33.2 | 35.6 | 40.5 | 46.2 | 53.4 | 64.6 | 84.0 | 84.0 |
Reduction stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
