Small AC Gear Motor

2200W Series

Motor power: 2200W(3HP) Horizontal or Vertical install

Phase: Single Phase / Three Phase

Gear Ratio: 3-1800K

Motor selection: 3 phase motor 220V-240V/380V-415V,50HZ/60HZ; 1 phase motor, 220V,50HZ/60HZ; 1 phase motor, 110V,50HZ / 60HZ

Output shaft diameter: φ32mm φ40mm φ50mm

  • 2200W Series
  • 2200W Series
  • 2200W Series
  • 2200W Series
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

CH32/CV32-2200W-(Reduced box 1:30~60 ratio) Size diagram

CH40/CV40-2200W High specific number dimension diagram

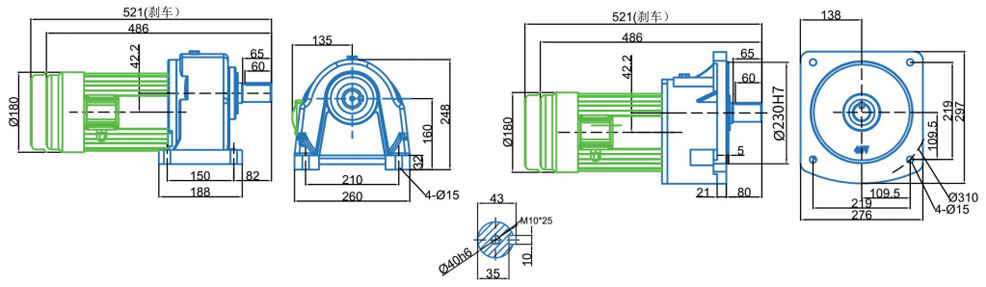

CH40/CV40-2200W - (Standard box ratio 1:3~60) (Reduced box ratio 1:70~200) Dimensional drawing

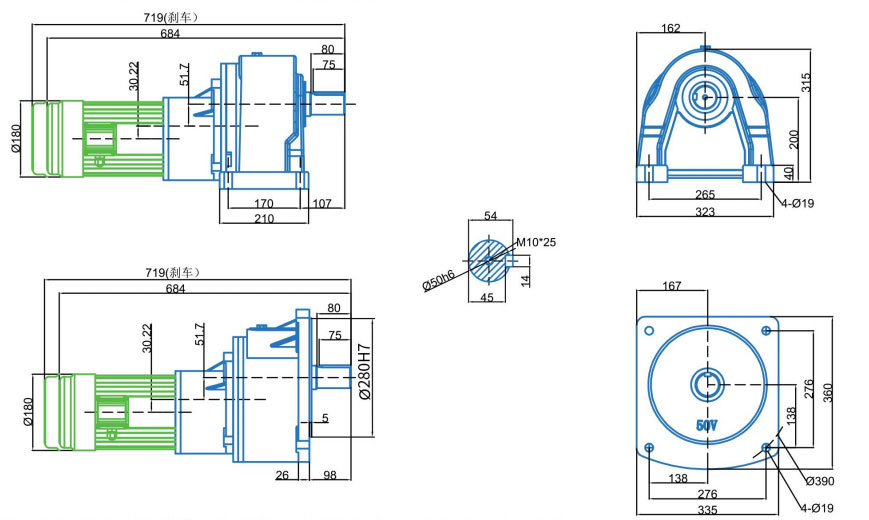

CH50/CV50-2200W (1:210 or higher ratio) Size diagram

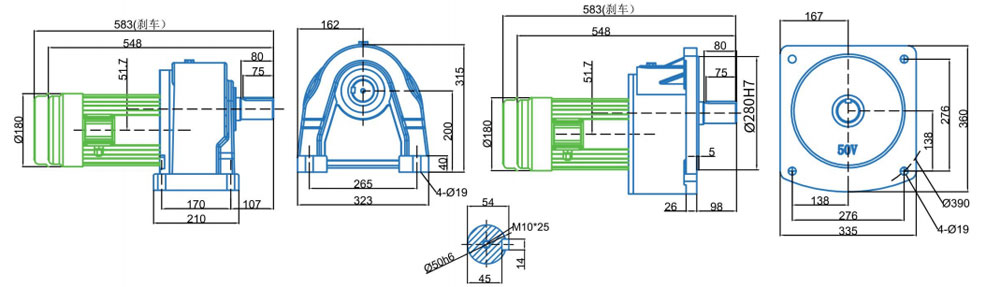

CH50/CV50-2200W - (Standard Box 1:70~200 Ratio) Dimensional Drawing

Electrical machinery parameter

Electrical machinery parameter

Power (kW)

Type

Voltage(v)

Frequency(Hz)

Rated Current(A)

Rated Rotation speed(rmp)

Capacitors(μF)

Insulation classification

Protective System

2.2kW

3HP

Three-phase

220V/380V

50Hz

8.9A/5.1A

1420rmp

/

F

IP54



2200W-(1:3-120 Digital ratio)Torque table

Gera Ratio

3

5

10

15

20

25

30

40

50

60

70

80

90

100

120

140

160

180

200

300

1200

1800

Output R.P.M.

50Hz

500

300

150

100

75

60

50

37

30

25

21.4

18.8

16.7

15

12.5

10.7

9.4

8.4

7.5

5

1.25

0.83

60Hz

600

360

180

120

90

72

60

45

36

30

25.7

22.5

20

18

15

12.9

11.3

10

9

6

1.5

1

Output Torque kg/m

50Hz

3.8

6.72

13.7

21

26.8

33.6

40.3

52

65

78.1

92.5

105

113.1

126

156.2















60Hz

3.2

5.6

11.2

16.8

22.4

28

33.6

43.4

54.3

65.1

77.1

87.5

94.3

105

128















The speed in the table is calculated based on the rated speed of the motor at 50Hz/60Hz, 1420r.min/1732r.min

The actual speed will vary slightly with the size of the load, with a variation range of about ± 5%.
