This 6W Induction AC Gear Motor is an efficient, compact and reliable small motor suitable...
CH28/CV28-1500W-(Reduced box 1:30~120 ratio) Size diagram

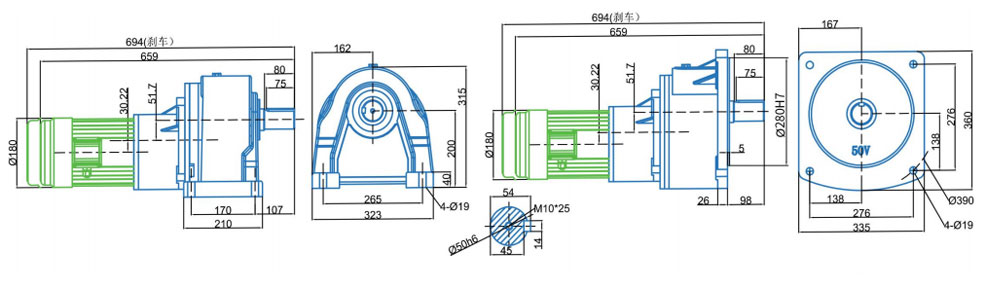

CH50/CV50-1500W - (Standard Box 1:125~200 Ratio) Dimensional Drawing
Application Industry
AGV
Automated robots
laser cutting
Logistics sorting
Photovoltaic power-station
Medical devices
Small AC Gear Motor
1500W Series
Motor power: 1500W(2HP) Horizontal or Vertical install
Phase: Single Phase / Three Phase
Gear Ratio: 3-1800K
Motor selection: 3 phase motor 220V-240V/380V-415V,50HZ/60HZ; 1 phase motor, 220V,50HZ/60HZ; 1 phase motor, 110V,50HZ / 60HZ
Output shaft diameter: φ28mm φ32mm φ40mm φ50mm
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.
-
Logistics Sorting
-
Automated Robots
-
laser cutting
-
Access control gate
-
Photovoltaic Power Station
-
Medical Devices
-
AGV
Product Description

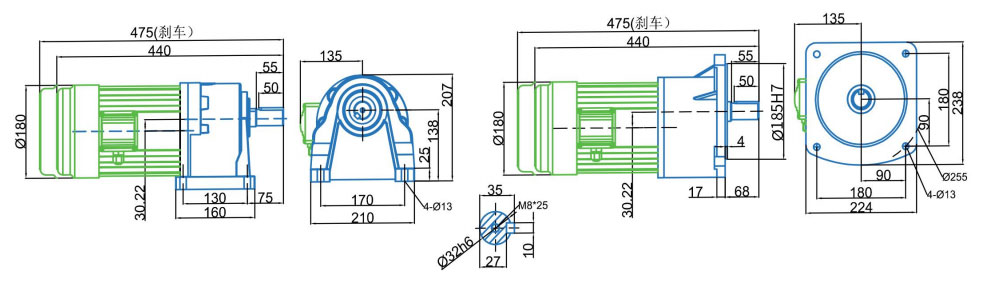

CH32/CV32-1500W - (Standard box 1:30~25 ratio) (Reduced box 1:30~120 ratio) Dimensional drawing

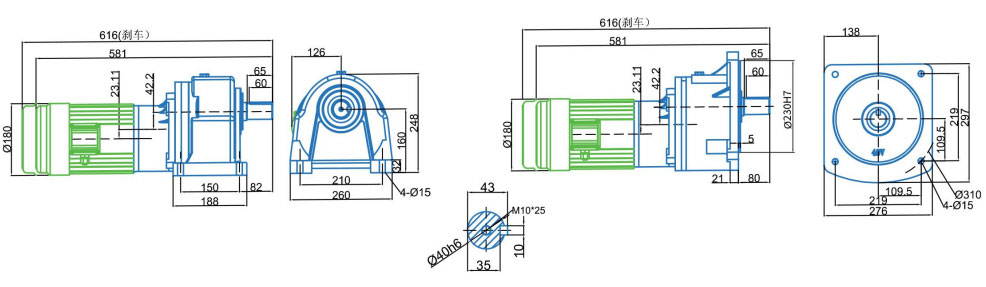

CH40/CV40-1500W (1:210 or higher ratio) Size diagram

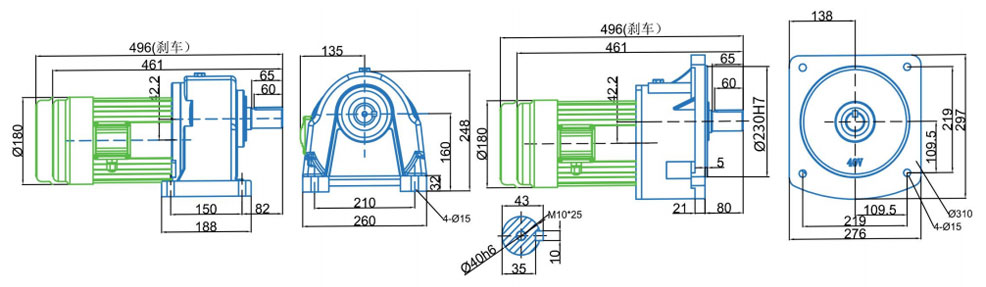

CH40/CV40-1500W - (Standard box 1:30~120 ratio) (Reduced box 1:125~200 ratio) Dimensional drawing
CH50/CV50-1500W (1:210 or higher ratio) Size diagram
Electrical machinery parameter
|
Electrical machinery parameter |
||||||||
|
Power (kW) |
Type |
Voltage(v) |
Frequency(Hz) |
Rated Current(A) |
Rated Rotation speed(rmp) |
Capacitors(μF) |
Insulation classification |
Protective System |
|
1.5kW 2HP |
Single-phase |
220V |
50Hz |
4.1A |
1420rmp |
30μF、150μF |
F |
IP54 |
|
Three-phase |
220V/380V |
50Hz |
6.6A/3.8A |
1420rmp |
/ |
|||
1500W-(1:3-180 Digital ratio)Torque table
|
Gera Ratio |
3 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
140 |
160 |
180 |
200 |
300 |
1200 |
1800 |
|
|
Output R.P.M. |
50Hz |
500 |
300 |
150 |
100 |
75 |
60 |
50 |
37 |
30 |
25 |
21.4 |
18.8 |
16.7 |
15 |
12.5 |
10.7 |
9.4 |
8.4 |
7.5 |
5 |
1.25 |
0.83 |
|
60Hz |
600 |
360 |
180 |
120 |
90 |
72 |
60 |
45 |
36 |
30 |
25.7 |
22.5 |
20 |
18 |
15 |
12.9 |
11.3 |
10 |
9 |
6 |
1.5 |
1 |
|
|
Output Torque kg/m |
50Hz |
2.6 |
4.5 |
9.1 |
13.5 |
18.1 |
22.6 |
27.1 |
34.9 |
43.6 |
52.1 |
62.4 |
70.8 |
77.1 |
83.7 |
100.4 |
116.1 |
131.8 |
147.6 |
|
|
|
|
|
60Hz |
2.2 |
3.8 |
7.6 |
11.3 |
15.1 |
18.9 |
22.6 |
29.1 |
36.4 |
43.7 |
52 |
59 |
64.3 |
69.8 |
83.7 |
96.8 |
109.9 |
123 |
|
|
|
|
|
The speed in the table is calculated based on the rated speed of the motor at 50Hz/60Hz, 1420r.min/1732r.min
The actual speed will vary slightly with the size of the load, with a variation range of about ± 5%.
