The SPE series gearboxes, flange size range with 40, 60, 80, 120, and 160 models, are desi...
Square output flange
Size range: 40-120mm
Power range: 50W-7500W
Reduction ratio: 3-512
Logistics Sorting
Automated Robots
laser cutting
Access control gate
Photovoltaic Power Station
Medical Devices
AGV

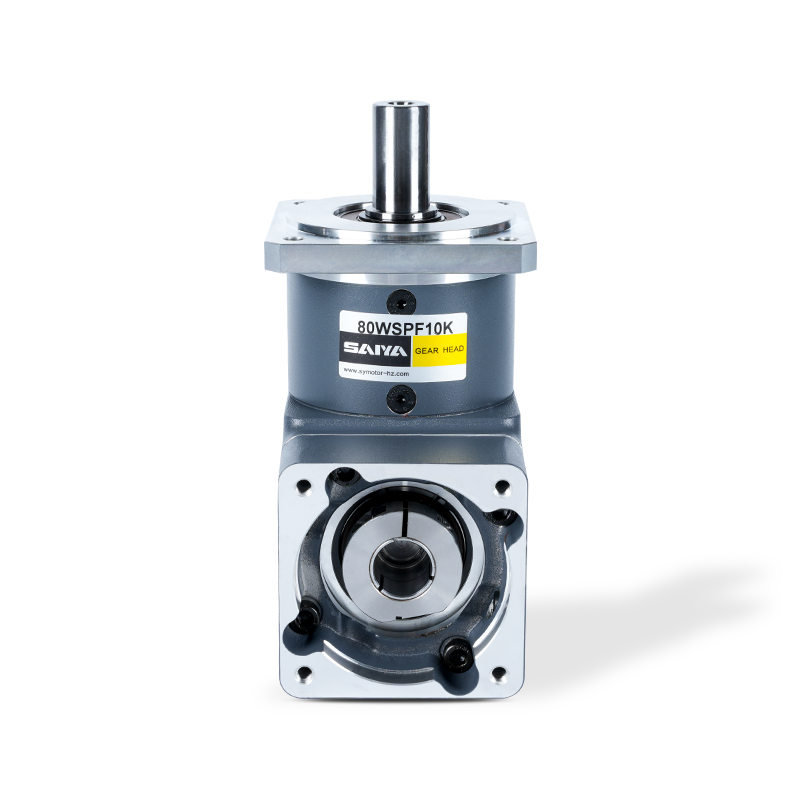

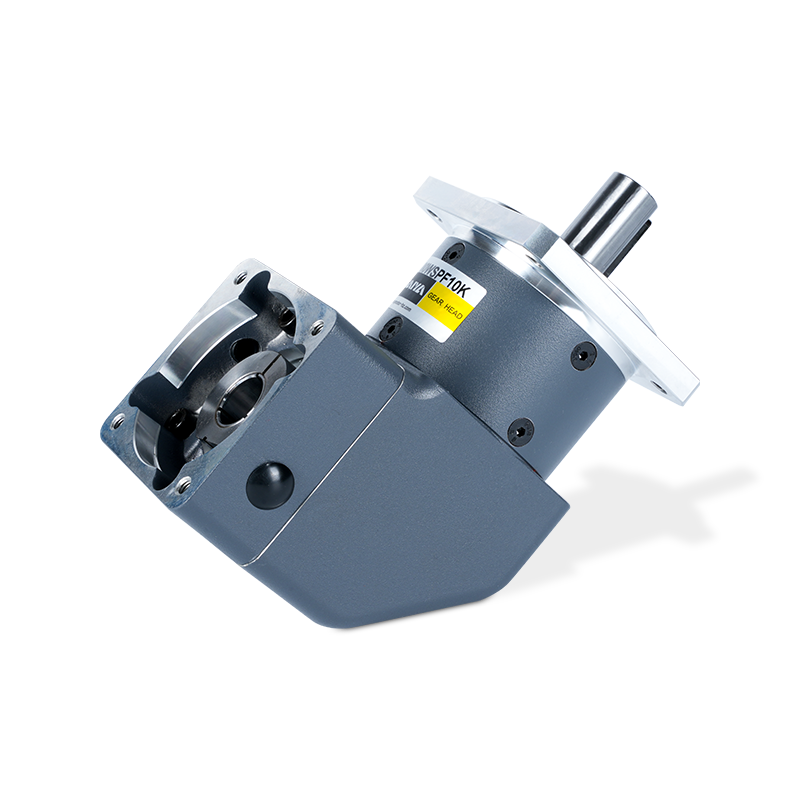

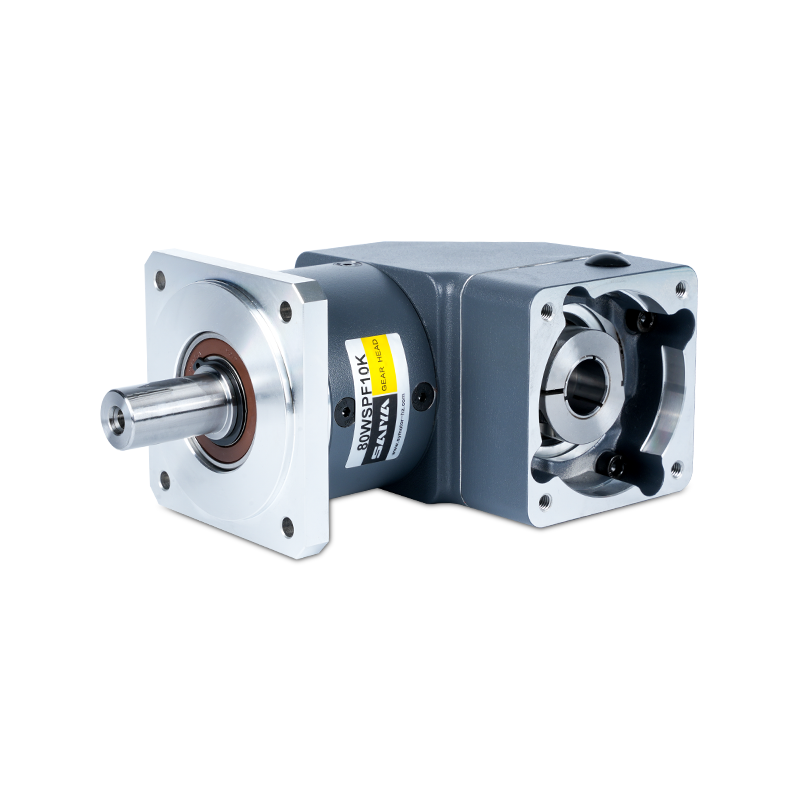

The WSPF series are with square output flanges, accommodating dimensions from 40mm to 120mm. These right angle flanges are engineered to excel in various industrial applications, offering reliable performance across a spectrum of requirements.
Designed with meticulous attention to detail, the WSPF series embodies durability, precision, and versatility. Whether utilized in machinery, automation systems, or industrial processes, these flanges exhibit consistent performance and reliability, contributing to enhanced operational efficiency and productivity.
The square output design of these flanges ensures compatibility with various equipment configurations, facilitating seamless integration into existing systems. This adaptability streamlines installation processes and minimizes downtime, optimizing overall workflow efficiency.
WSPF series represents a pinnacle of engineering excellence, combining robust construction, versatile functionality, and precise performance to meet the diverse needs of modern industrial environments.

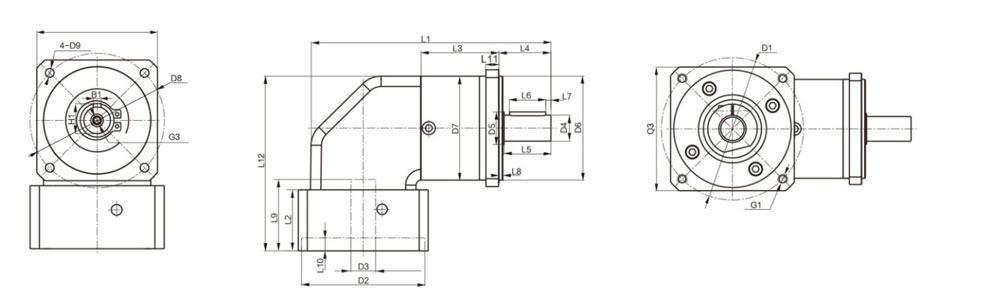

Model | WSPF40 | WSPF60 | WSPF80 | WSPF120 | ||||||||
Stage | 1 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | |
Size | (Unit): mm | |||||||||||
L1 | 119.5 | 132.5 | 144.5 | 156.5 | 169.5 | 182 | 194 | 212 | 229.5 | 258.5 | 286.5 | 314 |
L3 | 38.5 | 51.5 | 63.5 | 46.5 | 59.5 | 72 | 60 | 78 | 95.5 | 73.7 | 101.5 | 129 |
L12 | 68 | 93 | 109.5 | 145.5 | ||||||||
Output End | ||||||||||||
L4 | 26 | 35 | 40 | 50 | ||||||||
L5 | 24 | 30.5 | 36 | 50 | ||||||||
L6 | 16 | 25 | 28 | 40 | ||||||||
L7 | 2.5 | 2.5 | 4 | 5 | ||||||||
L8 | 2 | 3 | 3 | 4 | ||||||||
L11 | 6 | 8 | 10 | 15 | ||||||||
D4 | φ10h7 | φ14h7 | φ20h7 | φ25h7 | ||||||||
D5 | φ12 | φ17 | φ25 | φ35 | ||||||||
D6 | φ26 | φ50 | φ80 | φ110 | ||||||||
D7 | 45 | 60 | 90 | 120 | ||||||||
D8 | φ50 | φ70 | Φ100 | Φ130 | ||||||||
D9 | φ3.5 | φ5.5 | φ6.5 | φ8.5 | ||||||||
B1 | 3 | 5 | 6 | 8 | ||||||||
H1 | 11.2 | 16 | 22.5 | 28 | ||||||||
G3 | M3×9 | M5×12 | M6×16 | M10×22 | ||||||||
Input End | ||||||||||||
L2 | 19 | 23 | 26.5 | 27 | ||||||||
L9 | 25 | 30 | 35 | 45 | ||||||||
L10 | 3 | 2.5 | 3.5 | 3.5 | ||||||||
D1 | φ46 | φ70 | φ100 | φ115 | ||||||||
D2 | φ30h7 | φ50h7 | φ80h7 | φ95h7 | ||||||||
D3 | φ8h7 | φ14h7 | φ16h7 | φ19h7 | ||||||||
G1 | M4×10 | M5×12 | M6×15 | M8×20 | ||||||||
Q3 | 40 | 60 | 90 | 115 |
