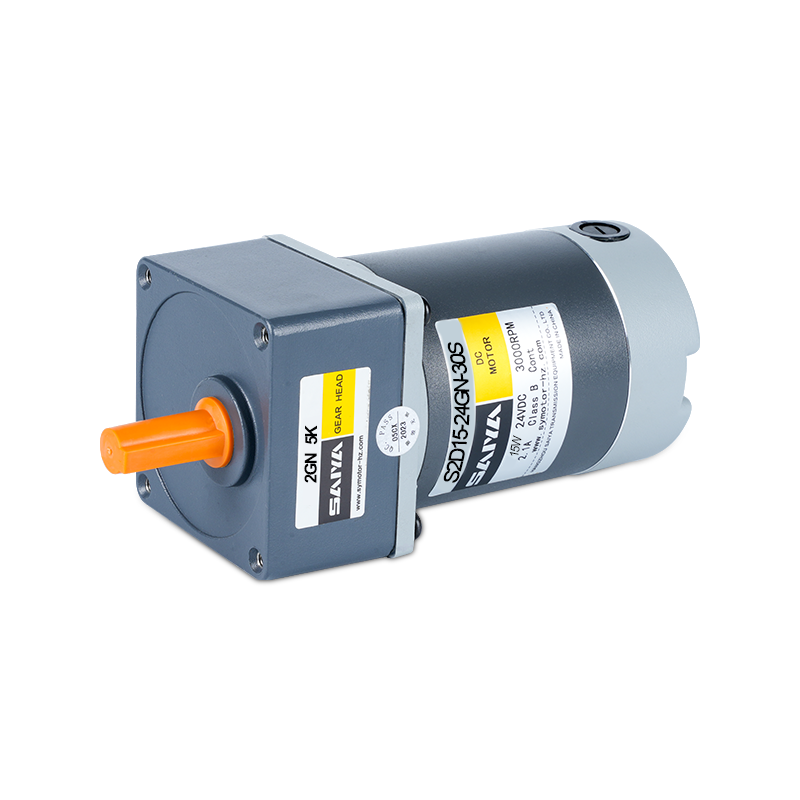

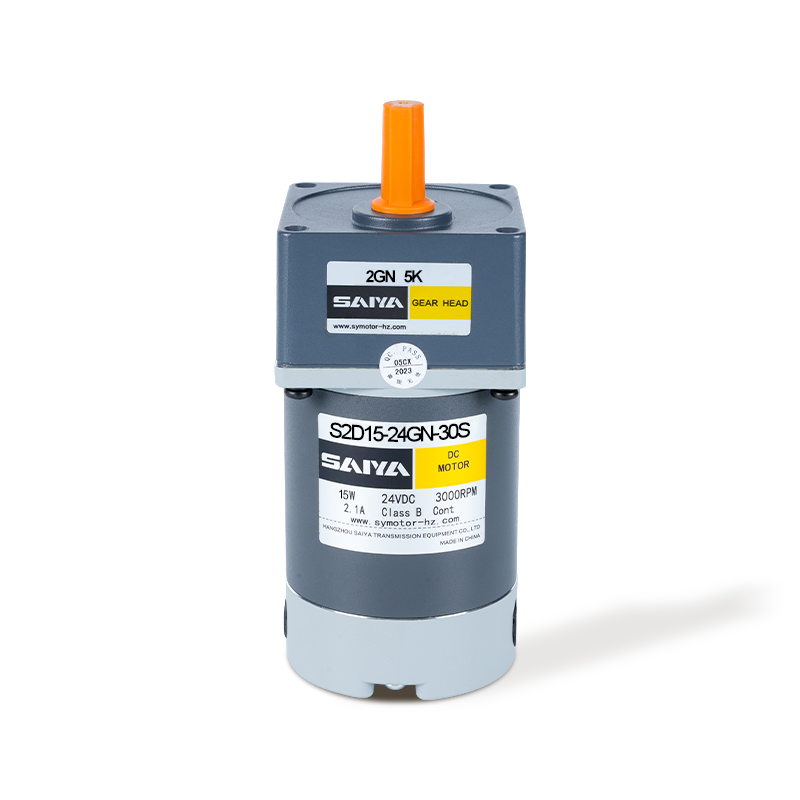

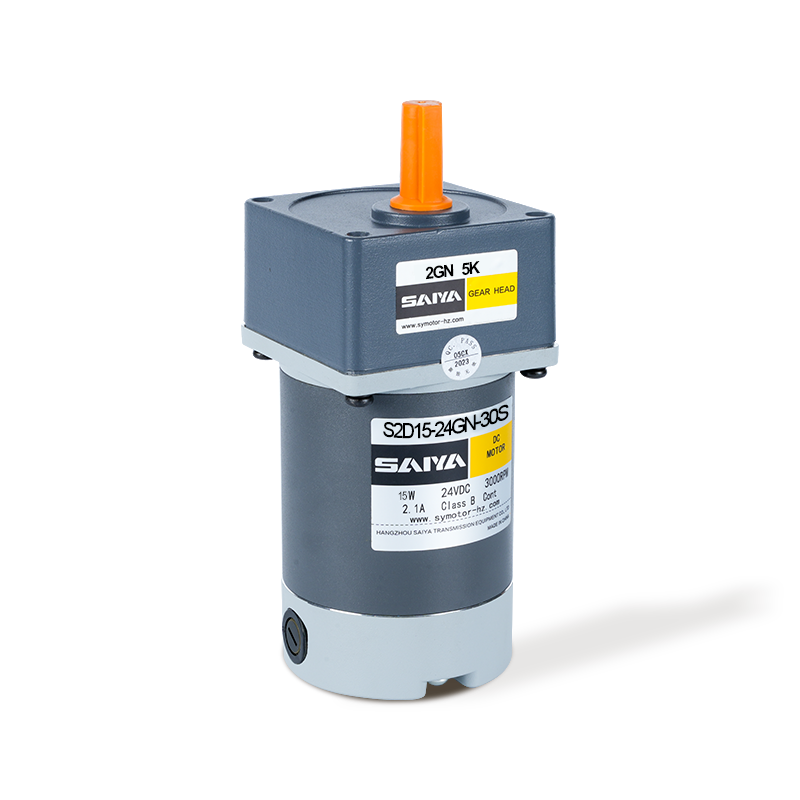

15W Brush DC Gear Motors

Voltage size: 15W, 60mmx60mm
Operating voltage: 12-90V
No load parameters: Speed 3000-3200rpm
Current used: 0.2-0.80A
Load parameters: Rotational speed 2950-3000rpm
Current used: 0.4-2.0A
Torque: 48mN.M

  • 15W Brush DC Gear Motors
  • 15W Brush DC Gear Motors
  • 15W Brush DC Gear Motors
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.
  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 15W Brush DC Gear Motor is designed for efficiency and versatility, suitable for various applications. With a compact Frame size of 60mm x 60mm, it fits seamlessly into tight spaces. The motor operates within a voltage range of 12-90V, making it adaptable to different power sources.

Under no-load conditions, the motor achieves a speed of 3000-3200 RPM and draws a current of 0.2-0.8A. When a load is applied, the speed slightly decreases to 2950-3000 RPM, with the current consumption ranging between 0.4-2.0A. Despite these slight variations, the motor maintains a torque output of 48mN.m, ensuring consistent performance.

This motor's robust design and reliable operation make it ideal for applications requiring precise control and sustained torque. It is perfect for robotics, conveyor systems, and small machinery where consistent speed and torque are critical. The wide operating voltage and current range offer flexibility, making it compatible with various electronic controllers and power supplies.

6 W Motor Performance Parameters

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
S2D06-12□ 12 6 3200 0.6 Max. 2950 19 0.8 2000 0.6
S2DW06-12□ 12 6 3200 0.6 Max. 2950 19 0.8 2000 0.6
S2D06-24□ 24 6 3200 0.3 Max. 2950 19 0.5 2000 0.6
S2DW06-24□ 24 6 3200 0.3 Max. 2950 19 0.5 2000 0.6
S2D06-90□ 90 6 3000 0.2 Max. 2800 20 0.3 2000 0.6
S2DW06-90□ 90 6 3000 0.2 Max. 2800 20 0.3 2000 0.6

10W Motor Performance Parameters

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
S2D10-12□ 12 10 3200 1.0 Max. 2800 34 2.0 2000 0.7
S2DW10-12□ 12 10 3200 1.0 Max. 2800 34 2.0 2000 0.7
S2D10-24□ 24 10 3300 0.5 Max. 3000 32 0.9 2000 0.7
S2DW10-24□ 24 10 3300 05 Max 3000 32 0.9 2000 0.7
S2D10-90□ 90 10 3200 0.3 Max. 2800 34 0.6 2000 0.7
S2DW10-90□ 90 10 3200 0.3 Max. 2800 34 0.6 2000 0.7

15W Motor Performance Parameters

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
S2D15-12□ 12 15 3200 08 Max 2950 48 2.0 2000 0.9
S2DW15-12□ 12 15 3200 0.8 Max. 2950 48 2.0 2000 0.9
S2D15-24□ 24 15 3300 0.4 Max. 3000 48 1.0 2000 0.9
S2DW15-24□ 24 15 3300 0.4 Max. 3000 48 1.0 2000 0.9
S2D15-90□ 90 15 3200 0.2 Max. 3000 48 0.4 2000 0.9
S2DW15-90□ 90 15 3200 0.2 Max. 3000 48 0.4 2000 0.9

Motor voltage, power and speed will be customized according to his request under the allowed circumstance of adoptable dimension.

Weuse Water Din the mode toexpressthe externalbush motor,such as z2DW06-12GN.now, it means the standard internal motor For the external brush motor you can replace the brush directly. For internal ones, we need to disassemble the engine.

Allowance Torque Unit:Upside(N.m) / Belowside(kgf.cm)

Type Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
S2D06-24GN Speed r/min 983 819 590 492 393 328 295 236 197 164 148 118 98 82 74 59 49 39 33 30 25 20 16 15
2GN□K 0.05 0.06 0.08 0.09 0.12 0.14 0.16 0.20 0.24 0.28 0.28 0.35 0.42 0.51 0.57 0.71 0.76 0.96 1.15 1.27 1.53 1.91 2.29 2.55
0.46 0.56 0.77 0.93 1.16 1.39 1.54 1.93 2.31 2.78 2.78 3.47 4.16 5.00 5.55 6.94 7.49 9.37 11.2 12.5 15.0 18.7 22.5 25.0
S2D10-24GN Speed r/min 1000 833 600 500 400 333 300 240 200 167 150 120 100 83 75 60 50 40 33 30 25 20 17 15
2GN□K 0.08 0.09 0.13 0.15 0.19 0.23 0.26 0.32 0.39 0.46 0.46 0.58 0.70 0.84 0.93 1.16 1.25 1.75 1.88 2.09 2.51 3.00 3.00 3.00
0.76 0.91 1.26 1.52 1.90 2.27 2.53 3.16 3.79 4.55 4.55 5.69 6.82 8.19 9.10 11.4 12.3 15.4 18.4 20.5 24.6 30.0 30.0 30.0
S2D15-24GN Speed r/min 1000 833 600 500 400 333 300 240 200 167 150 120 100 83 75 60 50 40 33 30 25 20 17 15
2GN□K 0.12 0.14 0.19 0.23 0.29 0.35 0.39 0.48 0.58 0.70 0.70 0.87 1.04 1.25 1.39 1.74 1.88 2.35 2.82 3.00 3.00 3.00 3.00 3.00
1.14 1.36 1.90 2.27 2.84 3.41 3.79 4.74 5.69 6.82 6.82 8.53 10.23 12.28 13.65 17.1 18.4 23.0 27.6 30.0 30.0 30.0 30.0 30.0

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

6W:Weight: Motor:0.6kg / Gearhead:0.4kg | 10W:Weight: Motor:0.7kg / Gearhead:0.4kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape is the same as that of the pinion shaft type.

Lead Wiring Type

15W:Weight:Motor:0.9kg / Gearhead : 0.4kg

Decimal Gearhead

Can be connected to GN pinion shaft type.


Gearhead Model Gear Ratio L1
2GN□K 3~18 32
25~200 41

Enter the gear ratio in the box(□)within the model name.
