Brushless DC Gear Motors: The Driving Force of Modern Technology

I. Introduction

In the rapid development of modern technology, motors, as core driving components of various mechanical and electronic systems, play a crucial role. From precise medical devices to heavy industrial machinery, the demand for motor efficiency, precision, and reliability continues to grow. Among many motor types, Brushless DC (BLDC) gear motors stand out due to their excellent performance, becoming the preferred choice for many high-performance applications.

A Brushless DC gear motor, as its name suggests, is the ingenious combination of a brushless DC motor and a gear train (or gearbox reducer). This integrated design aims to optimize the motor's output characteristics, enabling it to provide specific torque and speed to meet various demanding application requirements. This article will delve into the basic principles, working mechanisms, advantages, application areas, and selection criteria of brushless DC gear motors, as well as look forward to their future development trends.

II. Understanding Brushless DC (BLDC) Motors

What is a BLDC Motor?

A Brushless DC (BLDC) motor is a synchronous motor where the rotor consists of permanent magnets and the stator contains coil windings. Unlike traditional brushed DC motors, BLDC motors do not have carbon brushes and commutators for commutation. Brushed motors change the current direction through contact between brushes and a commutator, while BLDC motors control the current in the stator windings through an electronic commutator (usually a driver or controller) to generate a rotating magnetic field that drives the rotor.

BLDC motors offer significant advantages over brushed motors, including higher efficiency, longer lifespan, lower noise, and higher power density. These characteristics make them excel in applications requiring high performance and reliability.

How BLDC Motors Work

BLDC motors primarily consist of three core components: the stator, the rotor, and Hall effect sensors (or encoders). The stator is the fixed outer part of the motor, on which coil windings are wound. The rotor is the rotating inner part of the motor, embedded with permanent magnets. Hall effect sensors or encoders are used to detect the position of the rotor.

The working principle of a BLDC motor is based on electronic commutation. The controller, based on the rotor position information fed back by the Hall effect sensors, precisely controls the on/off state of the stator windings' current, thereby generating a rotating magnetic field that interacts with the rotor's permanent magnets. This magnetic field interaction produces torque, driving the rotor to rotate continuously. Through Pulse Width Modulation (PWM) technology, the voltage applied to the windings can be precisely controlled, thereby controlling the motor's speed and torque. BLDC motors can use either sensors for precise position feedback or sensorless control algorithms to estimate rotor position.

III. Understanding Gearboxes (Gear Reducers)

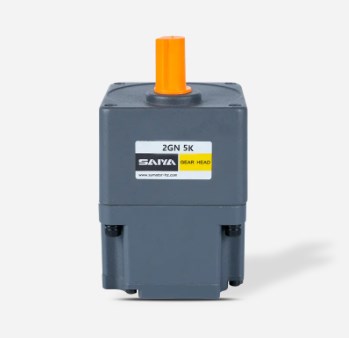

What is a Gearbox?

A gearbox, or gear reducer, is a mechanical device that changes rotational speed and torque through a series of meshing gears. Its primary purpose is to reduce the higher rotational speed of a motor to the desired output speed, while simultaneously multiplying the output torque. In addition, gearboxes can help achieve inertia matching, allowing the motor to drive the load more efficiently.

The gear ratio is a fundamental parameter of a gearbox, defining the ratio between the input shaft (motor side) speed and the output shaft (load side) speed.

Common Types of Gearboxes

There are various types of gearboxes available on the market, each with its unique advantages and applicable scenarios:

• Spur Gearboxes: The simplest and most common type of gearbox, with gear teeth parallel to the axis.
• Planetary Gearboxes: Composed of a central sun gear, several planet gears, and an outer ring gear. Planetary gearboxes are known for their compact size, high torque density, and coaxial input/output shafts, making them a common match for BLDC motors.
• Worm Gearboxes: Consist of a worm (threaded gear) and a worm wheel, often used to achieve large reduction ratios and self-locking functions.
• Helical Gearboxes: Have helical gear teeth, offering smoother operation and lower noise compared to spur gears.
• Cycloidal Gearboxes: Known for their high reduction ratios, high rigidity, and shock resistance.

Key Parameters

When selecting a gearbox, several key parameters need to be considered:

IV. The Synergy: Brushless DC Gear Motors

Why Combine BLDC Motors with Gearboxes?

Despite the numerous advantages of BLDC motors, in some applications, their inherent high speed and relatively low starting torque may not directly meet the requirements. For example, when large torque is needed to move heavy objects or when very slow and precise speed control is required, a standalone BLDC motor might be insufficient.

Combining a BLDC motor with a gearbox can effectively overcome these limitations. The gearbox can reduce the motor's high speed to the desired output speed while amplifying the torque, enabling the BLDC motor to drive larger loads or achieve finer motion control. This combination also improves the overall system's control and positioning accuracy.

Advantages of BLDC Gear Motors

BLDC gear motors combine the benefits of both BLDC motors and gearboxes, forming a high-performance drive solution:

• High Efficiency: Inherits the high efficiency characteristics of BLDC motors, and further enhances overall system energy utilization through optimized gear ratios.
• Long Lifespan: The brushless design eliminates brush wear, while the gearbox reduces gear component wear by lowering the motor speed to its optimal operating range, thereby extending the lifespan of the entire system.
• High Precision Control: Combining the excellent speed and position control capabilities of BLDC motors with the reduction effect of the gearbox achieves extremely high positioning and speed accuracy, especially suitable for precision motion control applications.
• Compact Size & High Power Density: Capable of delivering significant power output within a smaller volume, which is crucial for space-constrained applications.
• Low Noise & Vibration: The inherent smooth operation characteristics of BLDC motors, coupled with optimized gearbox design, result in low noise and vibration for the entire system.
• Low Maintenance: The brushless design reduces maintenance requirements, and the durability of the gearbox further lowers maintenance costs and downtime.

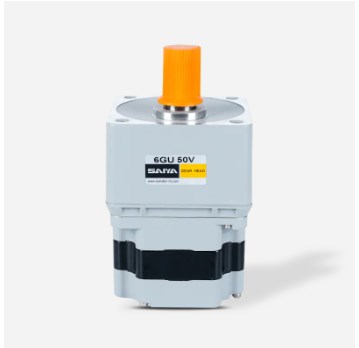

Common Gearbox Types Used with BLDC Motors

In brushless DC gear motors, Planetary Gearboxes are widely favored due to their unique advantages. Their compact structure, high torque transmission capability, and coaxial configuration make them an ideal match for BLDC motors. Additionally, spur gearboxes and other types of gearboxes may also be used depending on specific application requirements.

V. Key Performance Considerations & Challenges

Performance Metrics

When evaluating brushless DC gear motors, the following performance metrics need attention:

Challenges

Despite their significant advantages, brushless DC gear motors also face some challenges:

• Cost: The initial purchase cost of BLDC gear motors is generally higher compared to brushed DC motors, mainly due to their more complex motor structure and the required electronic controllers.
• Complexity: BLDC motors require dedicated electronic drivers and more complex control algorithms for commutation and speed/position control, which increases system design complexity.
• Integration and Sizing: Correctly matching the motor and gearbox, ensuring their compatibility in terms of performance, size, and interface, is a key challenge in the design process. Improper selection can lead to inefficiency, reduced lifespan, or suboptimal performance.

VI. Applications of BLDC Gear Motors

Brushless DC gear motors play a crucial role in numerous industries and applications due to their excellent performance and reliability:

• Robotics: In collaborative robots (cobots), industrial robots, and service robots, BLDC gear motors are often used for joint actuation and gripping mechanisms, providing precise and smooth motion.
• Medical Devices: They are ideal for precision medical instruments such as surgical tools, prosthetic limbs, medical pumps, and diagnostic equipment, which demand high precision, low noise, and high reliability.
• Industrial Automation: In industrial automation equipment such as conveyor systems, packaging machinery, CNC (Computer Numerical Control) machines, and Automated Guided Vehicles (AGVs), BLDC gear motors provide efficient and reliable driving force.
• Aerospace & Defense: Used in aircraft actuators, control surfaces, and drone propulsion systems, these applications have extremely high demands for performance and reliability.
• Automotive Industry: In automotive applications such as electric power steering, electric window lifts, seat adjusters, and HVAC systems, BLDC gear motors provide efficient and compact solutions.
• Consumer Electronics: In high-end home appliances and power tools, BLDC gear motors offer longer lifespan, lower noise, and higher performance.

VII. Selecting the Right BLDC Gear Motor

Selecting the right brushless DC gear motor is a crucial step to ensure the success of an application.

Define Application Requirements

First, clarify the specific requirements of the application:

• Required Torque and Speed: These are the most basic parameters, directly determining the motor's power and gear ratio.
• Duty Cycle: Continuous or intermittent operation, which will affect the motor's temperature rise and lifespan.
• Environmental Conditions: Environmental factors such as operating temperature, humidity, dust, and vibration will affect the motor's protection class and material selection.
• Space Constraints: Whether the motor's physical dimensions fit the installation space.
• Precision Requirements: How high the application's demands are for positioning accuracy and repeatability, which will affect the selection of gearbox backlash.

Motor Sizing

Based on the load's torque and speed requirements, calculate the required motor power and torque. Also, consider the matching between load inertia and motor rotor inertia to ensure system responsiveness and stability.

Gearbox Selection

Choosing the appropriate gearbox type (e.g., planetary gearbox) and determining the optimal gear ratio are critical. It is also necessary to consider the efficiency and backlash of the gearbox, especially for applications requiring high-precision motion control.

Controller/Driver Compatibility

Ensure that the selected motor and gearbox are compatible with the appropriate electronic controller/driver. The controller is responsible for the motor's electronic commutation, speed, and position control.

Cost vs. Performance Trade-offs

While meeting all technical requirements, it is also necessary to balance cost and performance to choose the most cost-effective solution.

VIII. Future Trends and Innovations

The field of brushless DC gear motors is constantly evolving, with future trends including:

• Miniaturization: With advancements in material science and manufacturing technology, motors and gearboxes will become smaller and lighter while maintaining or even increasing power output.
• Integration: More compact and highly integrated motor-driver-gearbox all-in-one solutions will become mainstream, simplifying system design and installation.
• Intelligence: Future BLDC gear motors will integrate more sensors and intelligent control algorithms to enable predictive maintenance, adaptive control, and higher levels of automation.
• Energy Efficiency: The pursuit of higher energy efficiency will drive continuous optimization of motor and gearbox designs to reduce energy loss.
• New Materials: The use of new high-performance materials (e.g., stronger permanent magnets, more wear-resistant gear materials) will further enhance motor performance and lifespan.

IX. Conclusion

Brushless DC gear motors, with their high efficiency, long lifespan, excellent precision, and compact size, have become indispensable drive solutions in modern industry and technology. They play a core role in various key industries such as robotics, medical devices, industrial automation, aerospace, and automotive, driving technological progress and innovation.

As technology continues to advance, brushless DC gear motors will continue to evolve towards miniaturization, integration, and intelligence, and their importance in future high-performance applications will become increasingly prominent. A deep understanding and proper selection of BLDC gear motors are crucial for achieving efficient and reliable mechanical systems.
