Small AC Gear Motor

100W Series

Motor power: 100W(1/8HP) Horizontal or Vertical install

Phase: Single Phase / Three Phase

Gear Ratio: 3-1800K

Motor selection: 3 phase motor 220V-240V/380V-415V,50HZ/60HZ; 1 phase motor, 220V,50HZ/60HZ; 1 phase motor, 110V,50HZ / 60HZ

Output shaft diameter: φ18 φ22mm φ28mm

  • 100W Series
  • 100W Series
  • 100W Series
  • 100W Series
PREV   |   No next article

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

CH18/CV18-100W-(Standard box 1:3~50 ratio) (Reduced box 1:60~200 ratio) Size diagram

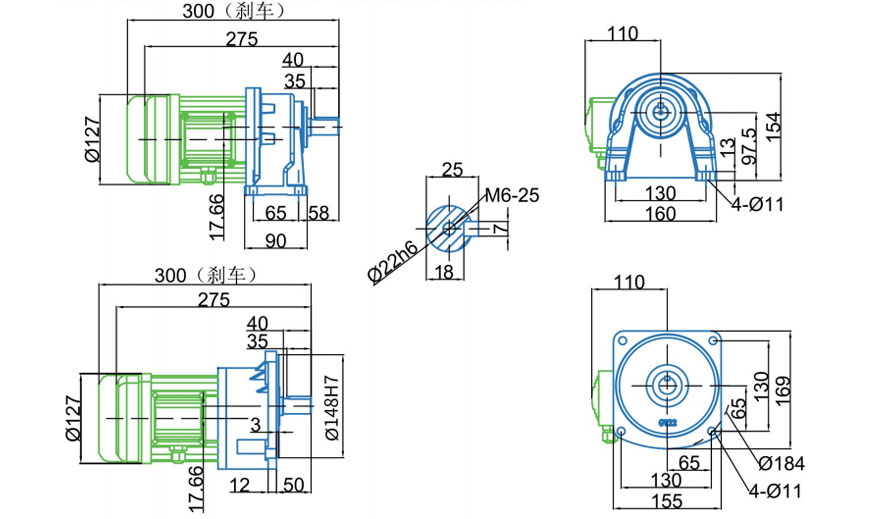

CH22/CV22-100W-Dimensional drawing with a ratio of 1:210 or higher

CH22/CV22-100W-(Standard box 1: 60-200 ratio) Size diagram

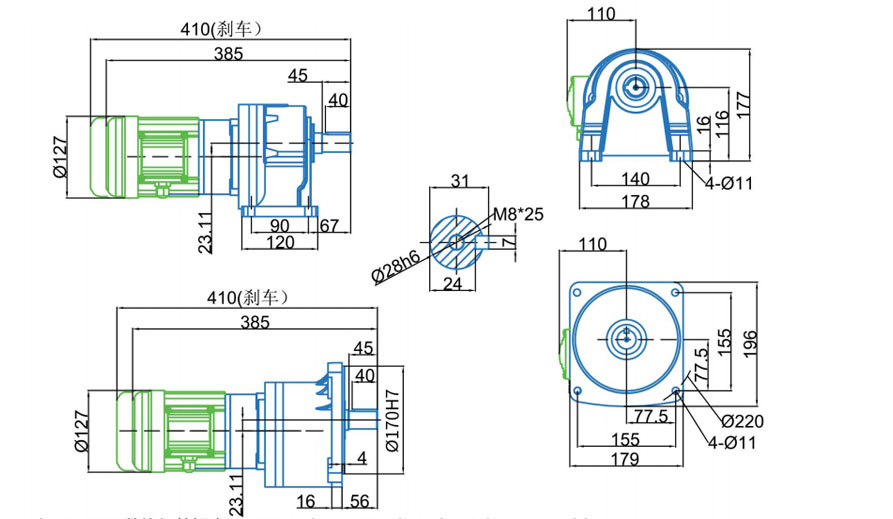

CH28/CV28-100W-Dimensional drawing with a ratio of 1:210 or higher

Electrical machinery parameter

Electrical machinery parameter

Power (kW)

Type

Voltage(v)

Frequency(Hz)

Rated Current(A)

Rated Rotation speed(rmp)

Capacitors(μF)

Insulation classification

Protective System

0.1 kW

1/8HP

Single-phase

220V

50Hz

0.35A

1420rmp

8μF

F

IP54

Three-phase

220V/380V

50Hz

0.6A/0.4A

1420rmp

/



100W-(1:3-1800 Digital ratio)Torque table

Gera Ratio

3

5

10

15

20

25

30

40

50

60

70

80

90

100

120

140

160

180

200

300

1200

1800

Output R.P.M.

50Hz

500

300

150

100

75

60

50

37

30

25

21.4

18.8

16.7

15

12.5

10.7

9.4

8.4

7.5

5

1.25

0.83

60Hz

600

360

180

120

90

72

60

45

36

30

25.7

22.5

20

18

15

12.9

11.3

10

9

6

1.5

1

Output Torque  kg/m

50Hz

0.19

0.31

0.62

0.91

1.2

1.4

1.8

2.2

2.8

3.4

4.3

4.8

5.2

5.8

6.9

8

9.1

10.3

11.6

17.5

58.5

58.5

60Hz

0.16

0.26

0.52

0.76

1

1.2

1.5

1.9

2.4

2.9

3.6

4.0

4.4

4.9

5.8

6.7

7.6

8.6

9.7

14.9

47.6

47.6

The speed in the table is calculated based on the rated speed of the motor at 50Hz/60Hz, 1420r.min/1732r.min
The actual speed will vary slightly with the size of the load, with a variation range of about ± 5%.
